In-service oil analysis is a key machine condition monitoring technique. In the time it takes external laboratories to return oil sample results, machinery condition can significantly change. On-site oil analysis eliminates the wait and enables immediate decision making.

An on-site oil analysis program can be divided into four levels ranging from basic oil analysis kits to check specific parameters to a full service central lab with automation for high volume testing. Testing requirements and instrumentation for lubricants from diesel engines are different than for lubricants from gear boxes and turbines. Below is a simple solution guide for implementing an on-site oil analysis program.

Purpose Rotating Machines Engines & Generators

Level 1
Route Based Oil Analysis

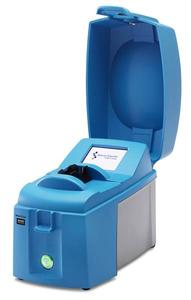

      Viscosity            MiniVisc 3050    Viscosity         MiniVisc 3000

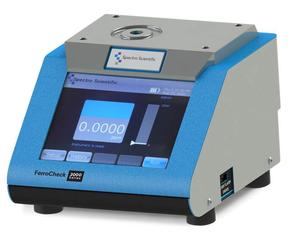

 Ferrous Wear  FerroCheck 2000   Ferrous Wear  FerroCheck 2000
Level 2
Contamination Control

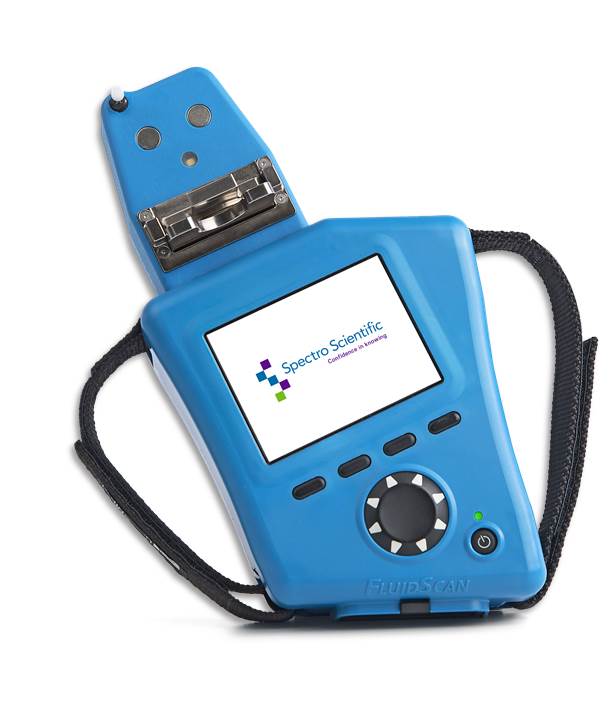

   Water   FluidScan 1100   Water, Coolant      FluidScan 1000

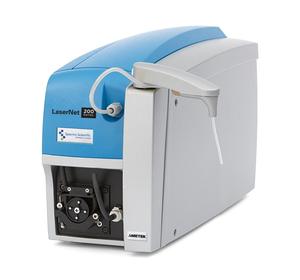

 Particulates       LaserNet 210   Fuel Dilution         FDM 6000

Level 3
On Site Oil Lab
(Level 1 + Level 2)



Particle Analysis
Oil Chemistry

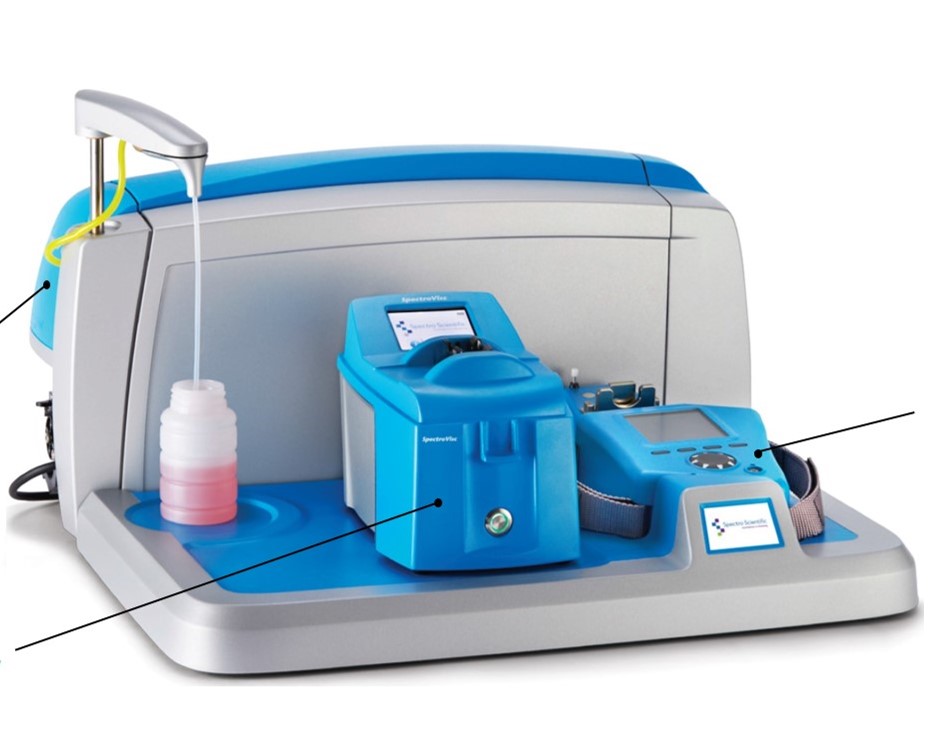

MiniLab 53
Viscosity
Elemental
Oil Chemistry
MicroLab 30
Viscosity



plus

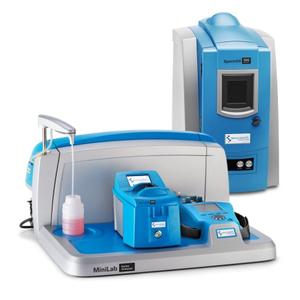

Elemental          MiniLab 153

plus

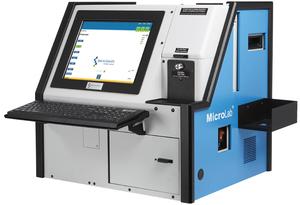

Particle Count MicroLab 40

Level 4
Full Size Oil Lab
         Automation LIMS                Industrial Tribology Lab (ITL)                SpectroTrack
